JWG Series: Helical Worm Gear Reducer
Greater Gear Ratio Greater Output Torque Greater Transmissiion Efficiency
You are here:
Home
Products
Ordinary Gear Reducer
JWG Series: Helical Worm Gear Reducer
The JWG series helical worm gear reducer adopts the three-stage transmission and has five sizes: 50, 63, 75, 90, and 110.
JWGFeatures
-The first-stage transmission adopts the worm gear and worm. It has a large reduction ratio (total reduction ratio can be up to 4000)。
-Compared with the JMRV series, the JWG series has a higher reduction ratio, output torque, and efficiency
-The external dimensions are almost the same as the JMRV series.
-The installation method is similar to the JMRV series.
-There is no difference in the diameter of the hollow output shaft compared to the standard JMRV series reducer.
-It can use all of the accessories from JMRV series.
特点
-The first-stage transmission adopts the worm gear and worm. It has a large reduction ratio (total reduction ratio can be up to 4000).
-Compared with the JMRV series, the JWG series has a higher reduction ratio, output torque, and efficiency.
-The external dimensions are almost the same as the JMRV series.
-The installation method is similar to the JMRV series.
-There is no difference in the diameter of the hollow output shaft compared to the standard JMRV series reducer.
- It can use all of the accessories from JMRV serie。
Rotation Direction

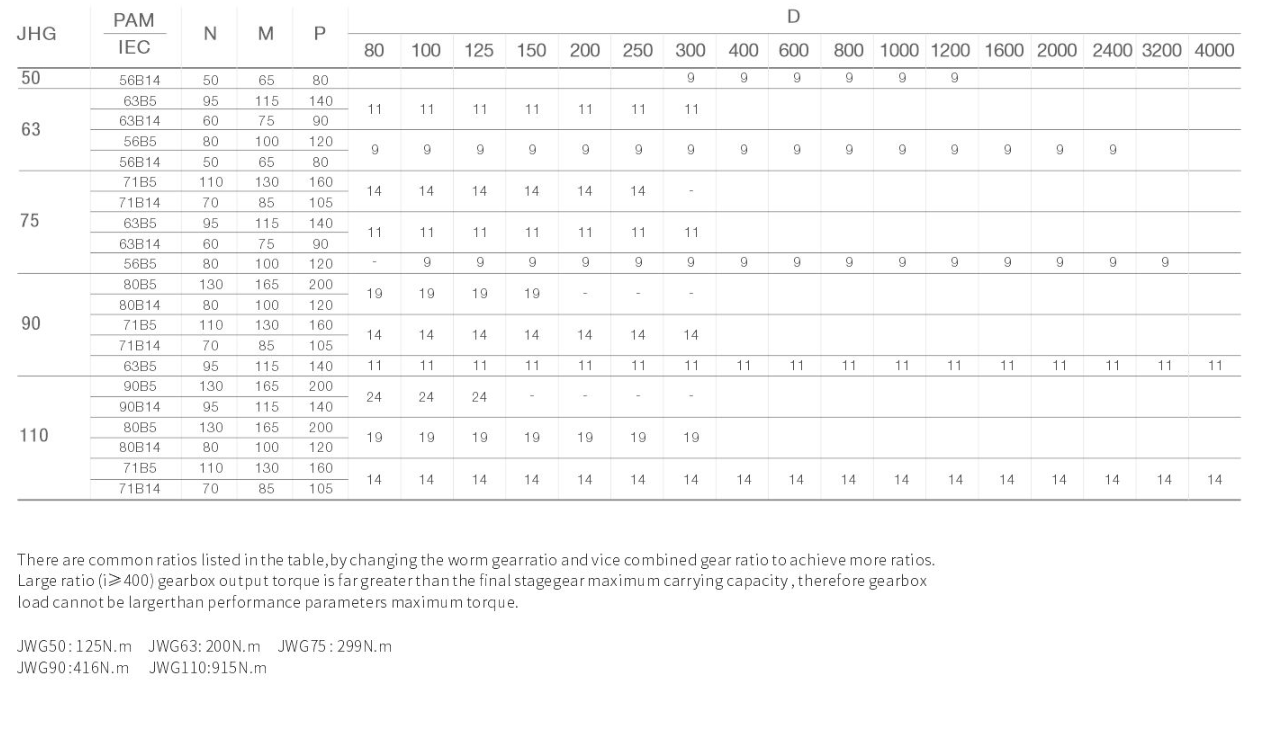

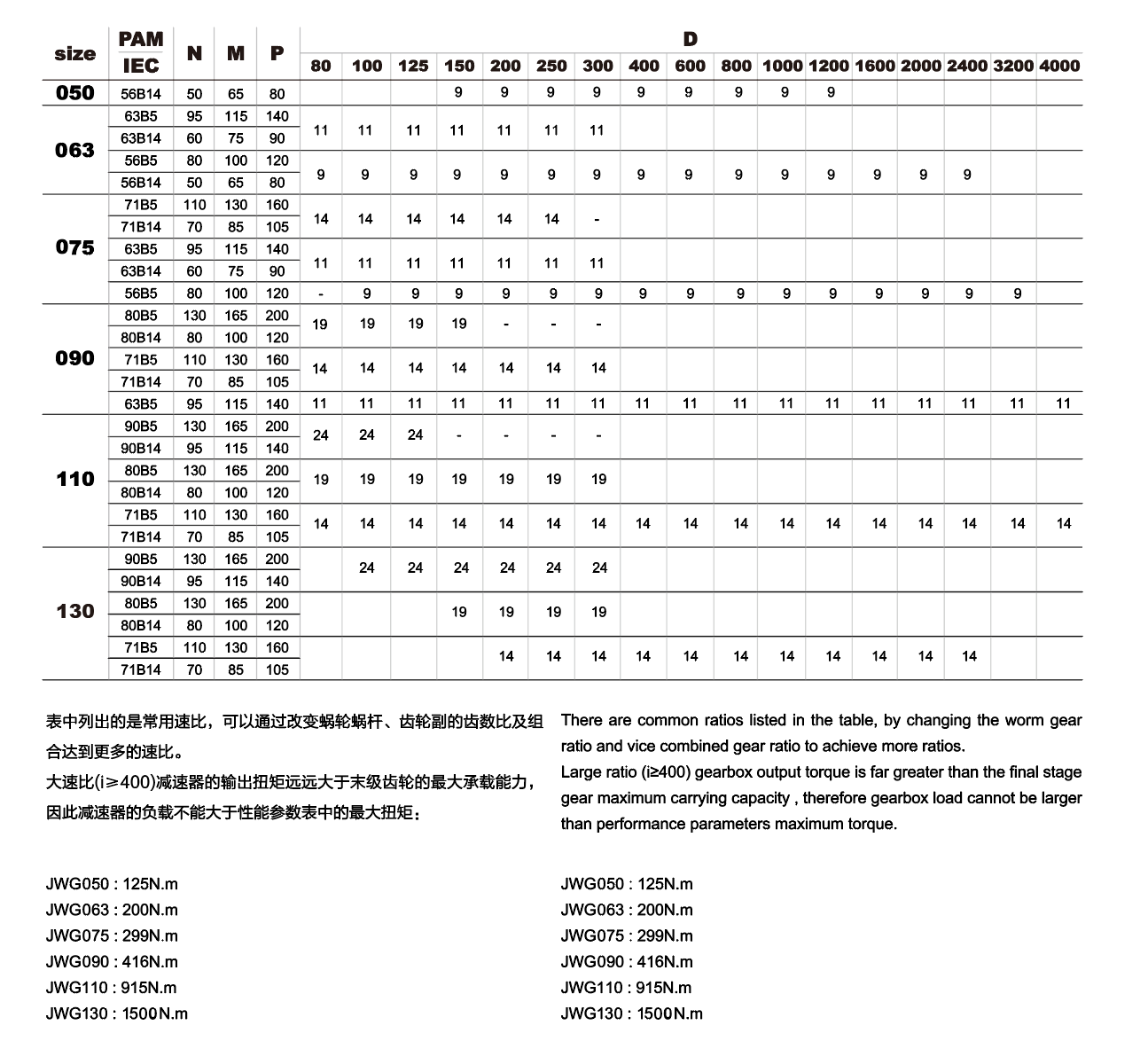

Configuration and Combination
Configuration and Combination

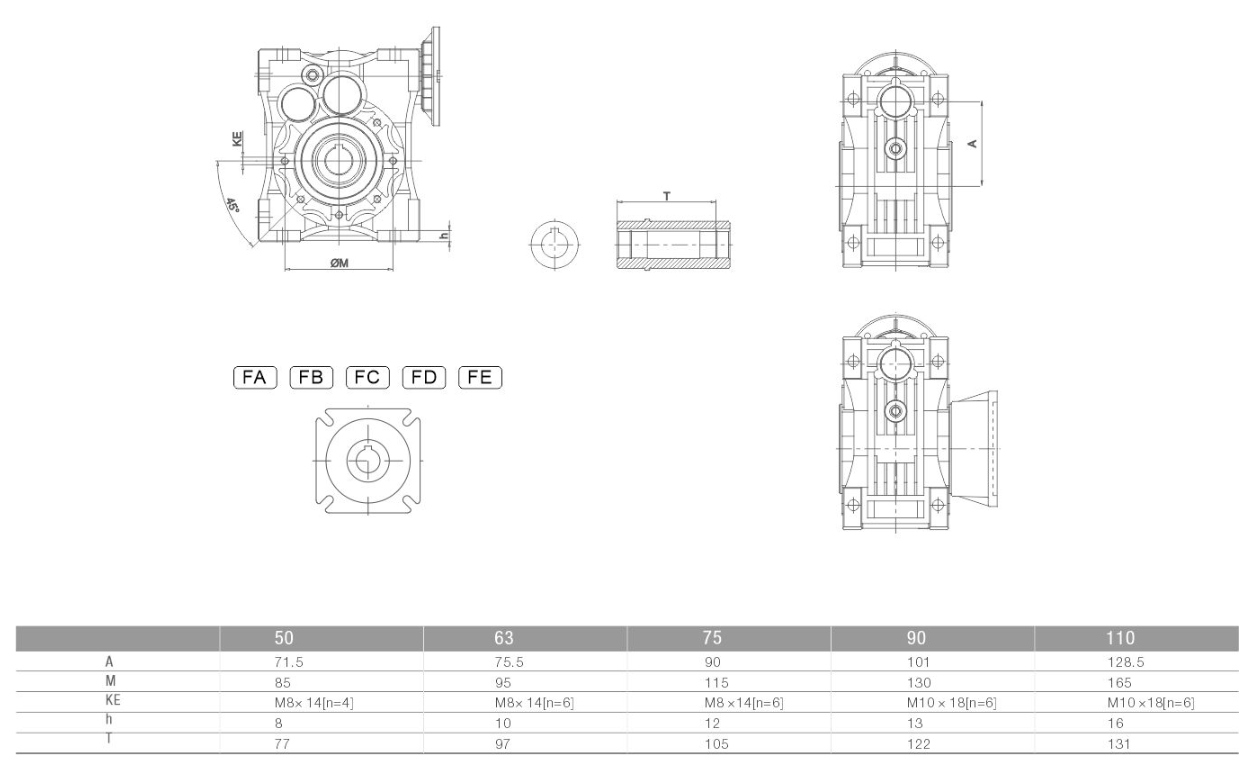

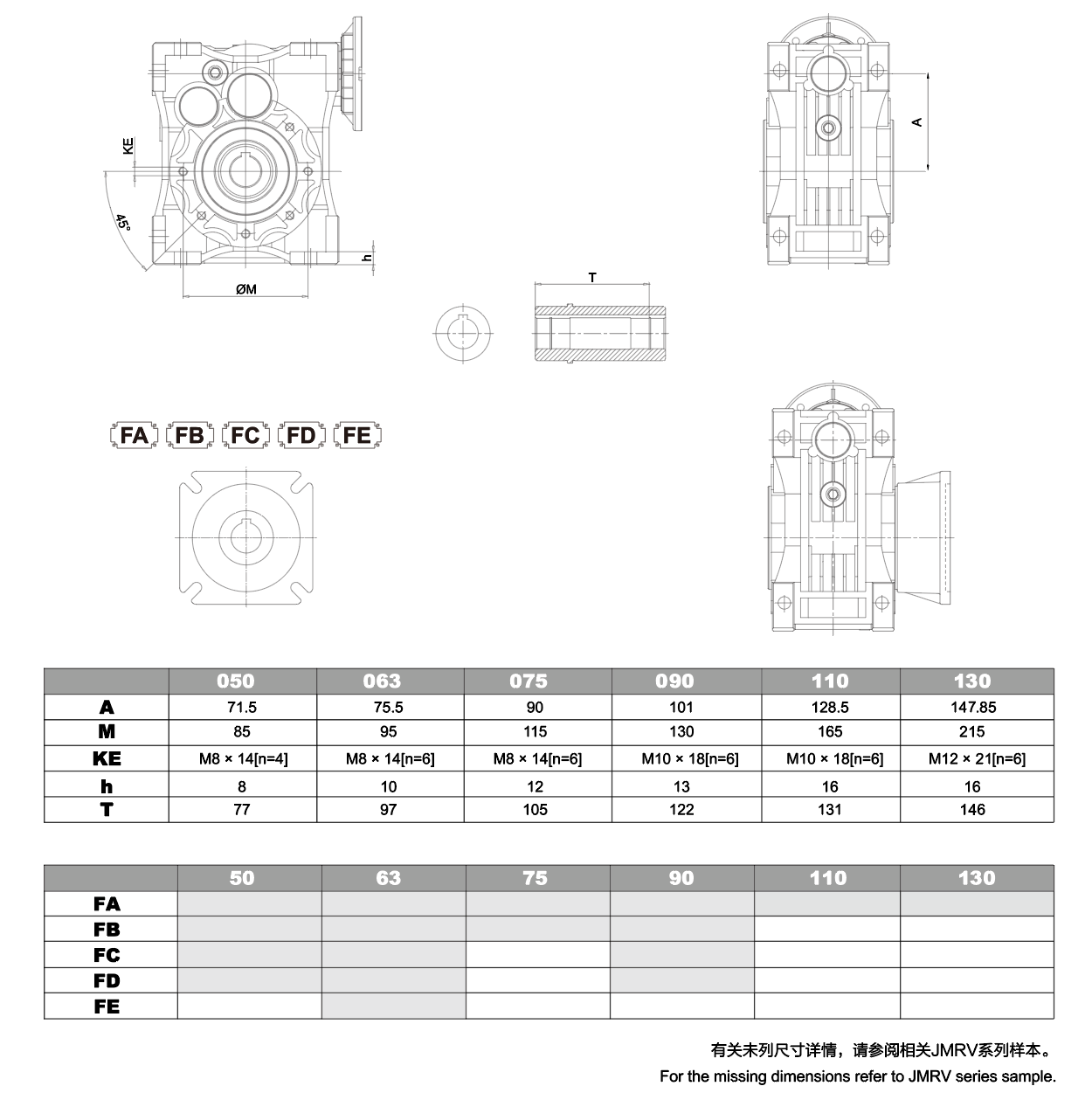

Dimensions
